BX312F

Road  /  Road

specification

Road bike Centerlock front hub.
WEIGHT :
24h - 97g ± 5g
28H - 111 ± 5g

Brake Interface :
CenterLock
Spoke System :
Straight Pull
Hole Count :
24, 28
Weight :
97g  ±  5g
Material :
Aluminum
Gauge :
14
Bearings :
2 (6803*2)
P.C.D :
ø 36 - ø 36
Axle System :
M9/12/15 / 100mm

End cap Options

M9x100mm
11g (Alloy 7075)
12Mx100mm
6g (Alloy 7075)
15Mx100mm
6g (Alloy 7075)

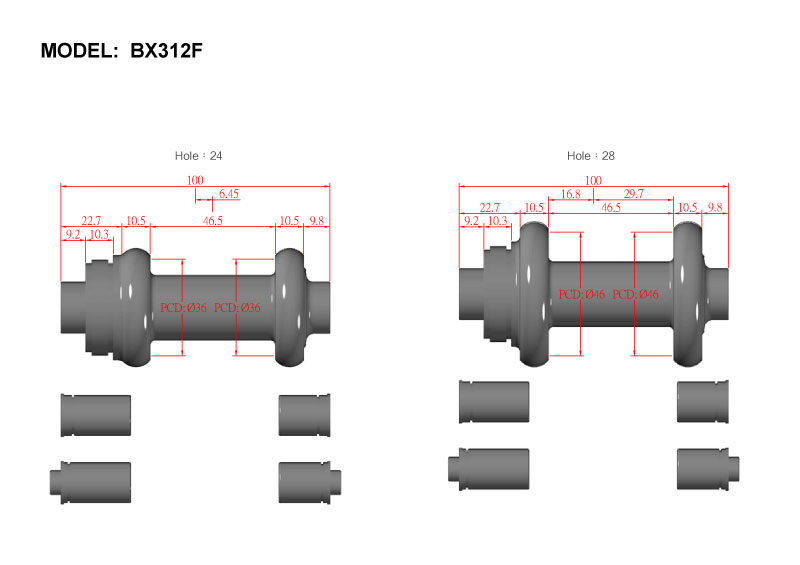

Products Drawing Download
