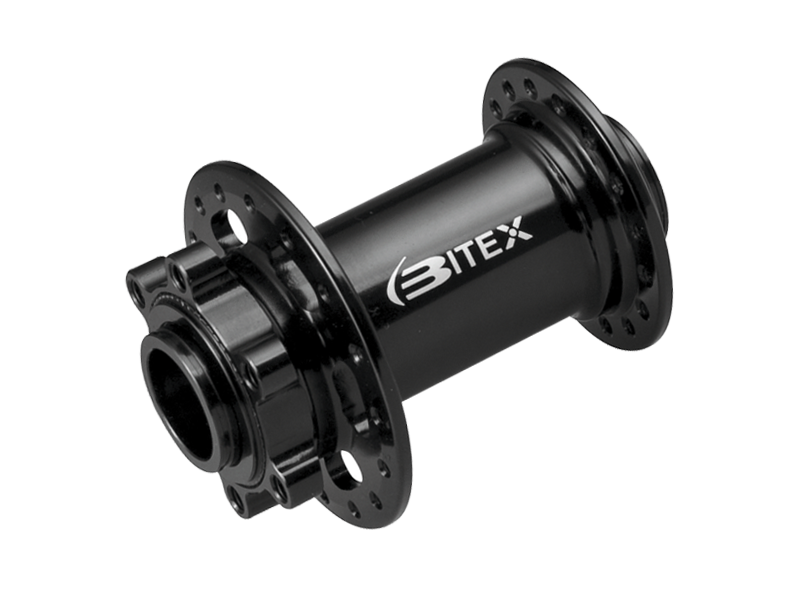

MTF15-20

Mountain  /  MTB

specification

WEIGHT :
M9/100mm - 186 ± 5g
9M/100mm - 196 ± 5g
12M/100mm - 189 ± 5g
15M/100mm - 181 ± 5g
15M/110mm - n/a
20M/110mm - 177 ± 5g

Brake Interface :
Disc(6-bolts)
Spoke System :
J-Bend
Hole Count :
24, 28, 32, 36
Weight :
186g  ±  5g
Material :
2 (6804*2)
Gauge :
14
Bearings :
2 (6804*2)
P.C.D :
ø 58 - ø 45

End cap Options

M9x100mm
13g ()
9Mx100mm
17g ()
12Mx100mm
14g ()
15Mx100mm
11g ()
15Mx110mm
15g ()
20Mx110mm
6g ()

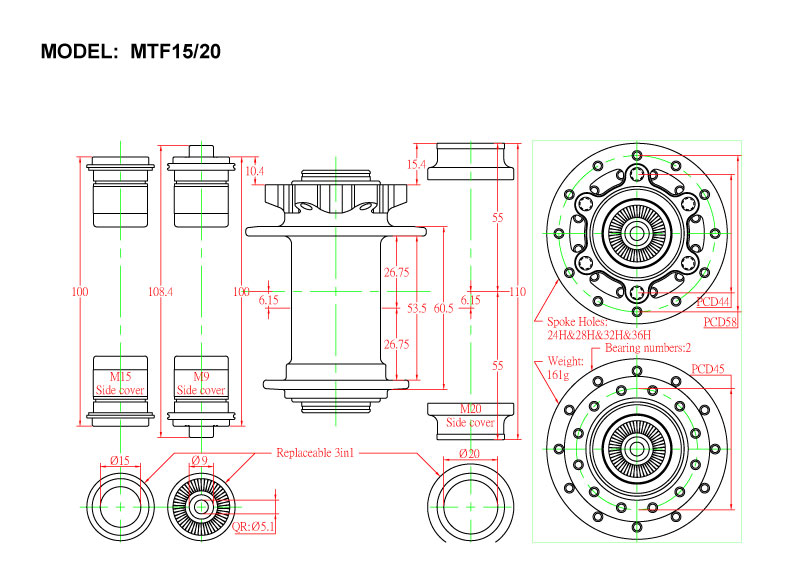

Products Drawing Download
