Products

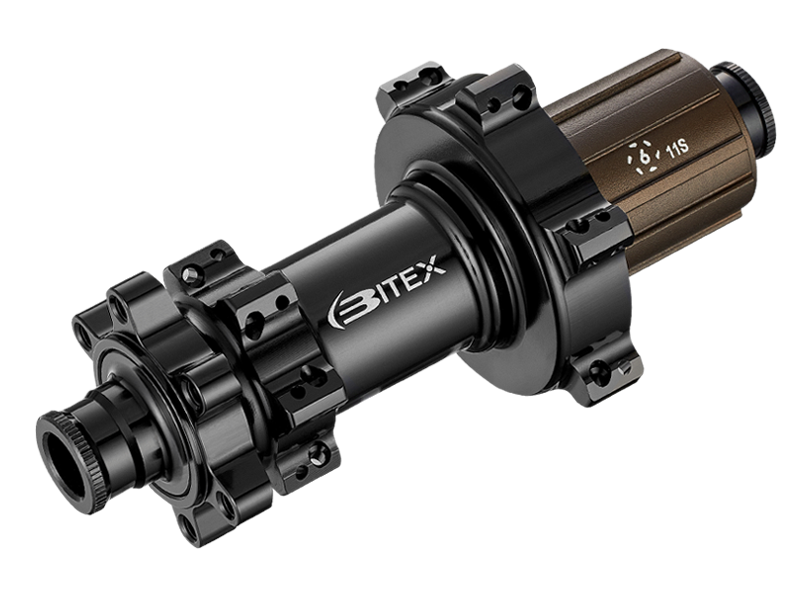

BX407R

E-Bike

specification

33T (OD:17mm) (ID:12mm)
Shimano/Sram xd

Brake Interface :
Disc(6-bolts)
Spoke System :
Straight Pull
Hole Count :
24, 28
Weight :
330g  ±  5g
Material :
Aluminum
Gauge :
14
Bearings :
4(Hub 6902+6903 / Freehub 17287+6902)
P.C.D :
ø 39 - ø 64
Axle System :
12M x 148mm

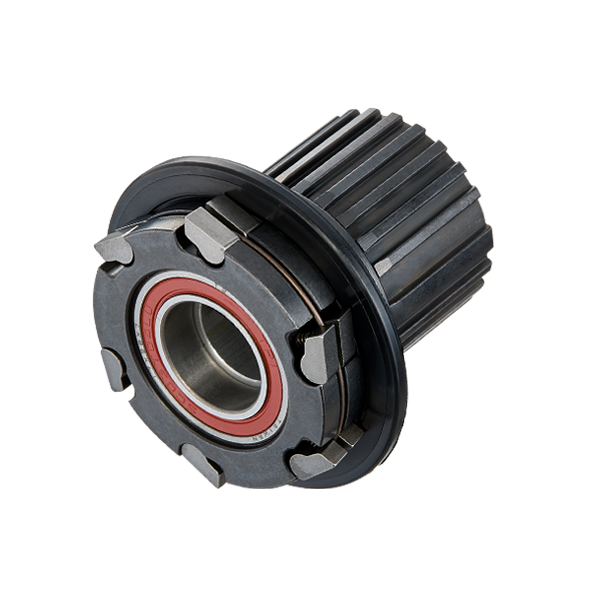

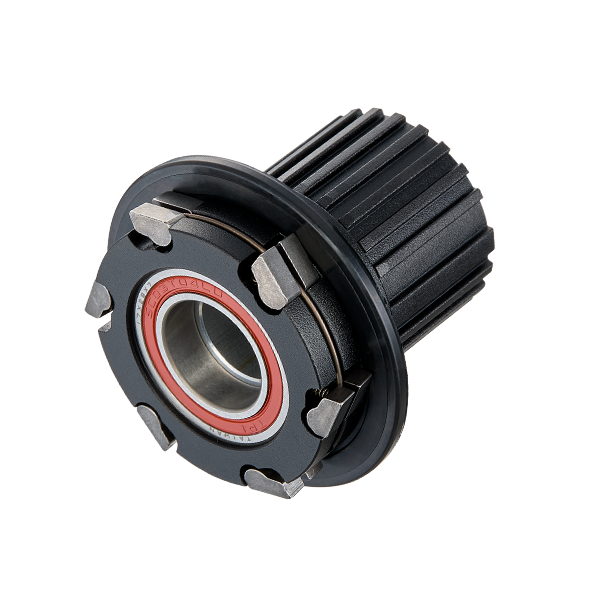

FreeHub Body Options

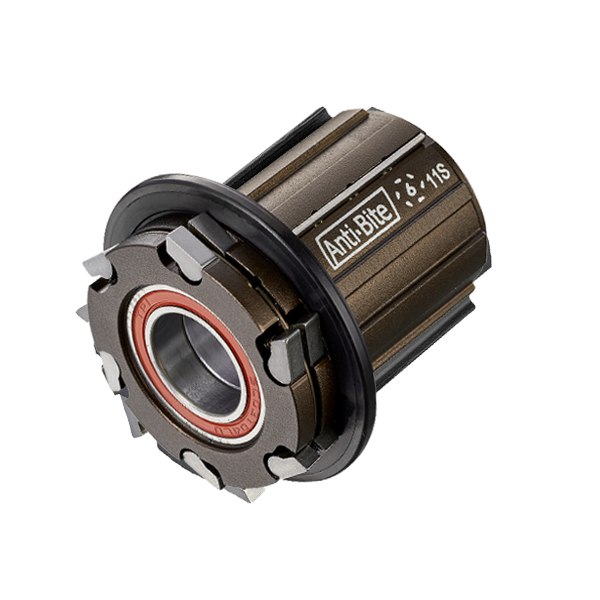

Shimano 11s (33T)
98g  ±  5g (Aluminum 7075)

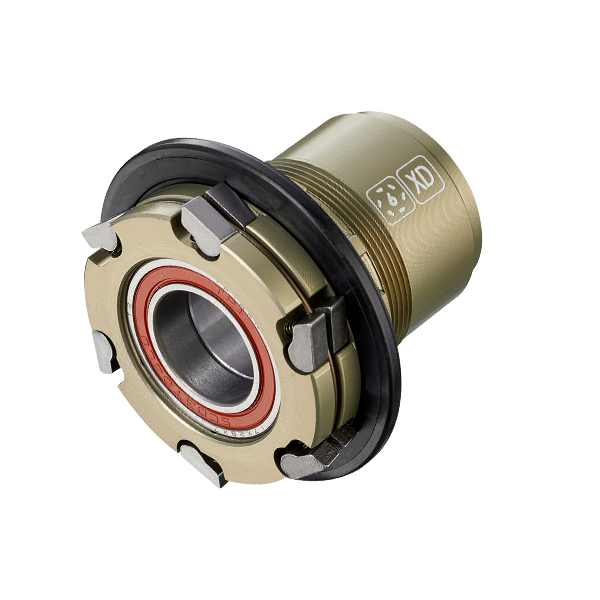

SRAM XD 11s (33T)
87g  ±  5g (Aluminum 7075)


Products Drawing Download
