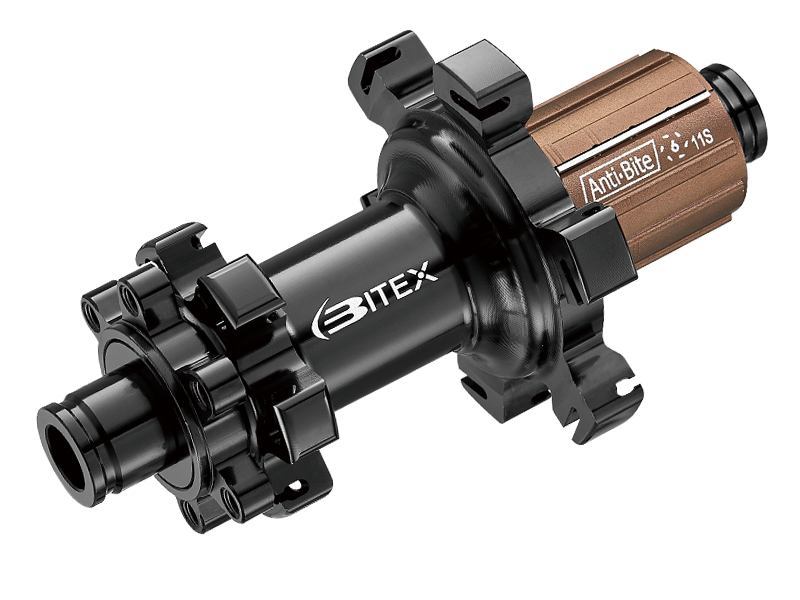

BX406R

Gravel

specification

Brake Interface :
Disc(6-bolts)
Spoke System :
Straight Pull
Hole Count :
24
Weight :
302g  ±  5g
Material :
Aluminum
Gauge :
14
Bearings :
4(Hub 6902*2 / Freehub 6802+6902)
P.C.D :
ø 43 - ø 70 (24H)
ø 56 - ø 70 (28H)
Axle System :
12M x 142mm

FreeHub Body Options

Shimano 12s
74g  ±  5g (Alloy 7075)
Shimano 10/11s
80g (Alloy 7075)
XD 11s / 12s
72g (Alloy 7075)


Products Drawing Download
