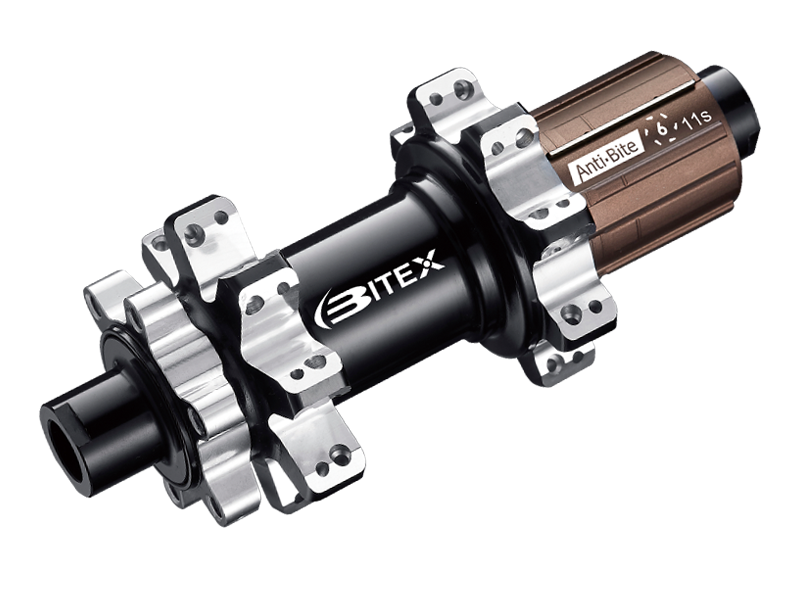

BX402R

Mountain  /  Boost

specification

Brake Interface :
Disc(6-bolts)
Spoke System :
Straight Pull
Hole Count :
28, 32
Weight :
283g  ±  5g
Material :
Aluminum
Gauge :
14
Bearings :
4 (Hub 6903*2 / Freehub 6802+6902)
P.C.D :
ø 55 - ø 55
Axle System :
12M x 148mm

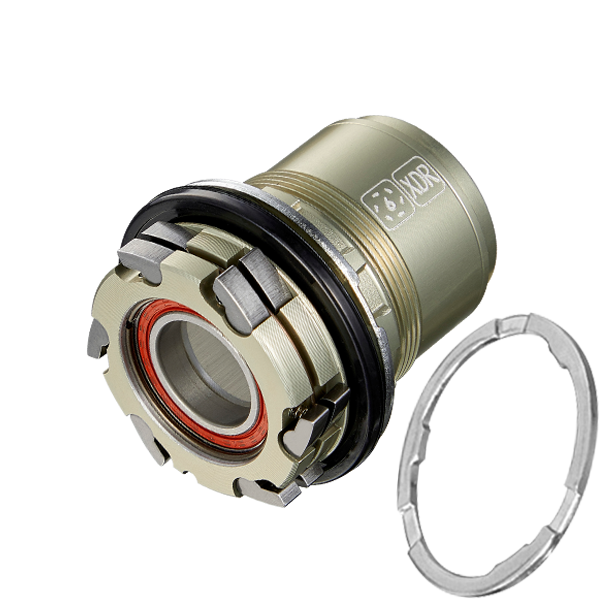

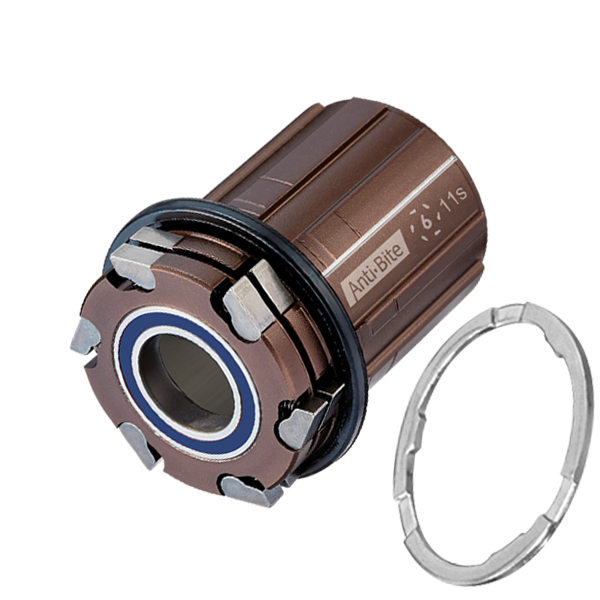

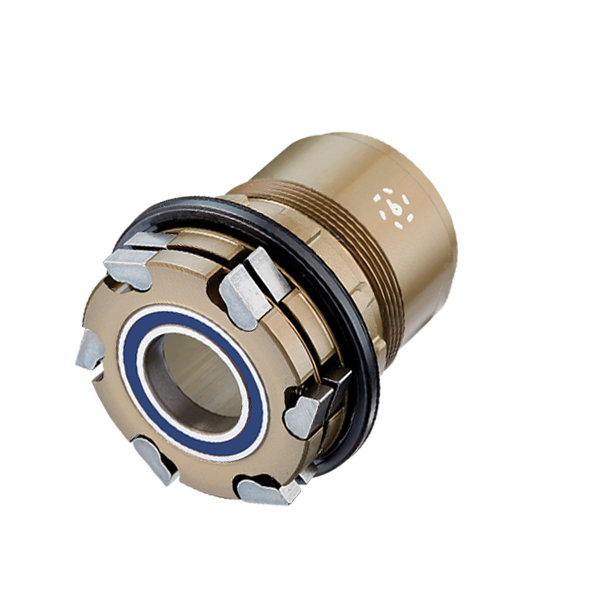

FreeHub Body Options

Shimano 10/11s
80g (Alloy 7075)
Shimano 12s
74g  ±  5g (Alloy 7075)
XD 11s
72g (Alloy 7075)


Products Drawing Download
