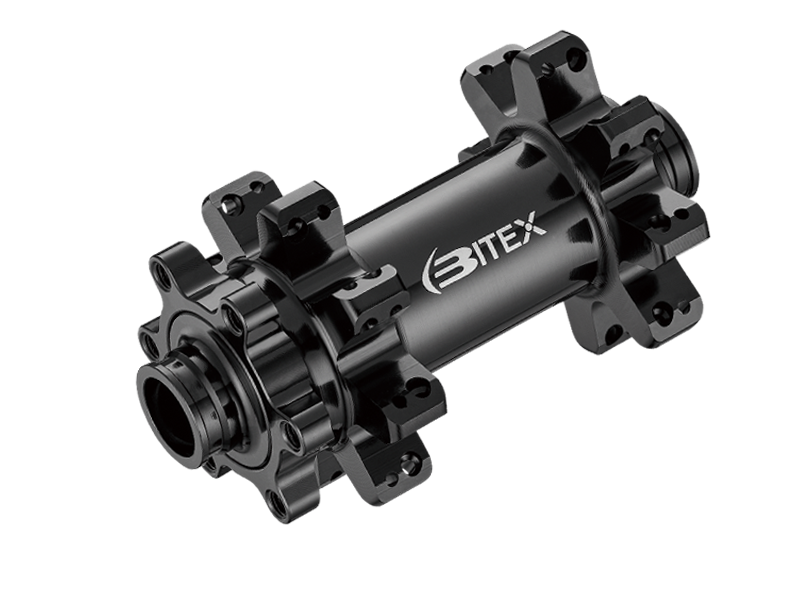

BX402F

Boost

specification

Boost Disc Hub
BX402F could change End Cap : PS-BX211F-30ST for ROCKSHOX FORK.

Brake Interface :
Disc(6-bolts)
Spoke System :
Straight Pull
Hole Count :
28, 32
Weight :
167g  ±  5g
Material :
Aluminum
Gauge :
14
Bearings :
2 (6903*2)
P.C.D :
ø 55 - ø 55
Axle System :
15M x 110mm

End cap Options

15Mx110mm
8g ()
15Mx110(ROCKSHOX)
15g (Alloy 7075)

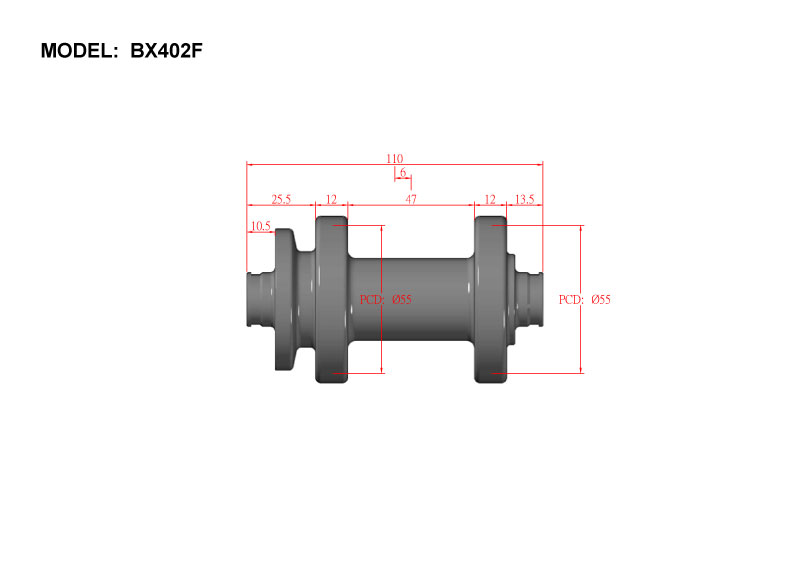

Products Drawing Download
