Products

BX401R

MTB

specification

Skewer:Sram(w/o. Nut).12mm*174B(OLD:142mm)
Skewer:Shimano(w/Nut).12mm*172B(OLD:142mm)

WEIGHT :
12M/142mm - 293 ± 5g
12M/142mm - 336 ± 5g (Steel Axle)

Brake Interface :
Disc(6-bolts)
Spoke System :
Straight Pull
Hole Count :
24, 28, 32
Weight :
281g  ±  5g (12Mx142mm)
Material :
Aluminum
Gauge :
14
Bearings :
4 (Hub 6902*2 / Freehub 6802+6902)
P.C.D :
ø 51 - ø 51
Axle System :
10M x 135mm  -  45g (Alloy)
12M x 135mm  -  32.5g (Alloy)
12M x 142mm  -  35g (Alloy)
M10(QR) x 135mm  -  47.5g (Alloy)

FreeHub Body Options

Shimano 10/11s
80g (Aluminum 7075)
XD 11s / 12s
72g (Aluminum 7075)
Shimano 12s
74g  ±  5g (Aluminum 7075)

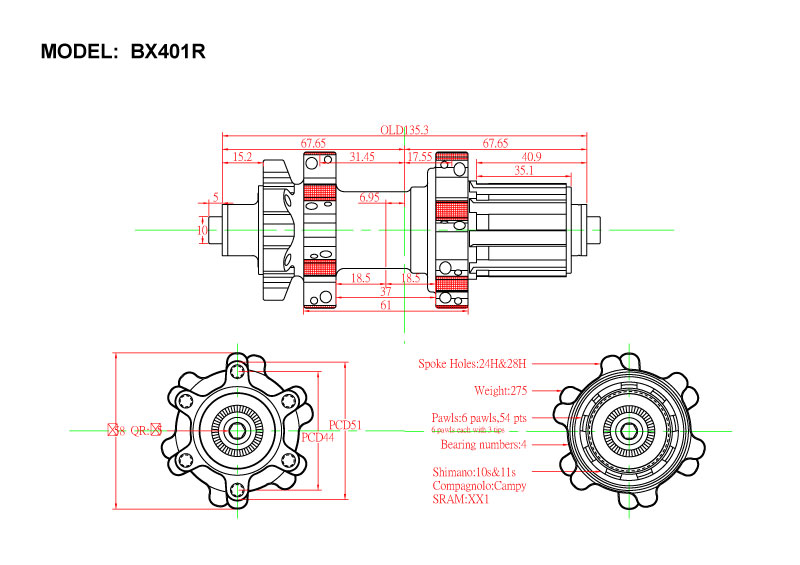

Products Drawing Download
