BX315R

Gravel

specification

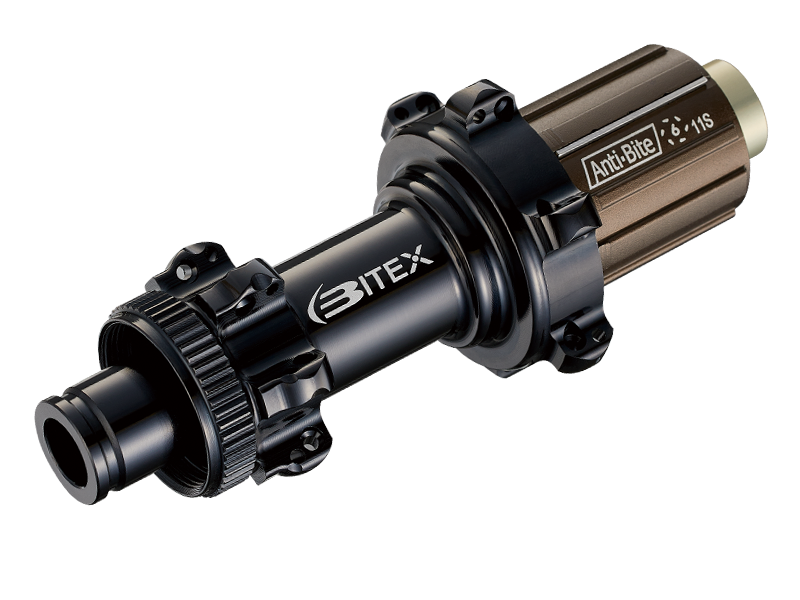

Gravel bike Centerlock rear hub.

Brake Interface :
CenterLock
Spoke System :
Straight Pull
Hole Count :
24, 28
Weight :
226g  ±  5g
Material :
Aluminum
Gauge :
14
Bearings :
4 (Hub 6802+6902 / Freehub 6802+6902)
P.C.D :
ø 35 - ø 51 (24H)
ø 51 - ø 51 (28H)
Axle System :
12M x 142mm  -  35g (Alloy)

FreeHub Body Options

Shimano 10/11s
80g (Aluminum 7075)
Steel Shimano Micro Spline 12s
162g  ±  5g (Steel)
XD 11s / 12s
72g (Aluminum 7075)

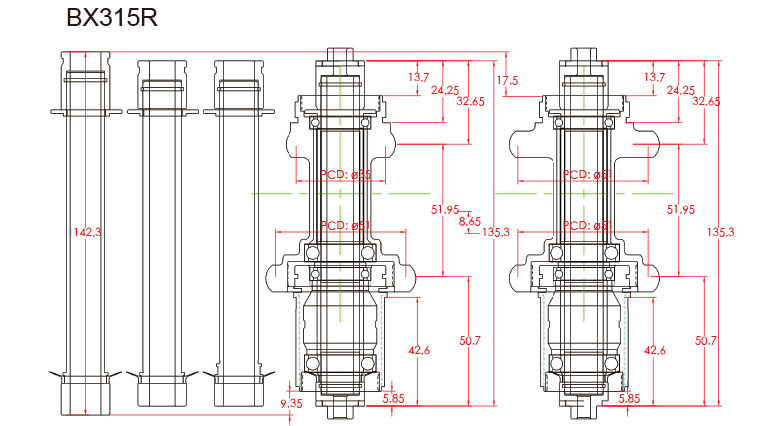

Products Drawing Download
