BX306R
Road
specification
- Brake Interface :
- Disc(6-bolts)
- Spoke System :
- Straight Pull
- Hole Count :
- 24
- Weight :
-
242g
±
5g
(M10x135mm)
- Material :
- Aluminum
- Gauge :
- 14
- Bearings :
- 4 (Hub 6802+6902 / Freehub 6802+6902)
- P.C.D :
-
ø
35
-
ø
49
- Axle System :
-
M10(QR) x 135mm
-
47.5g
(Axle:Alloy)
-
10M x 135mm
-
45g
(Axle:Alloy)
-
12M x 135mm
-
32.5g
(Alloy)
-
12M x 142mm
-
35g
(Alloy)
FreeHub Body Options
Shimano 10/11s
77g
(Alloy 7075)
Campy 10/11/12s
74g
(Alloy 7075)
XDR 11s/ 12s
68g
(Alloy 7075)

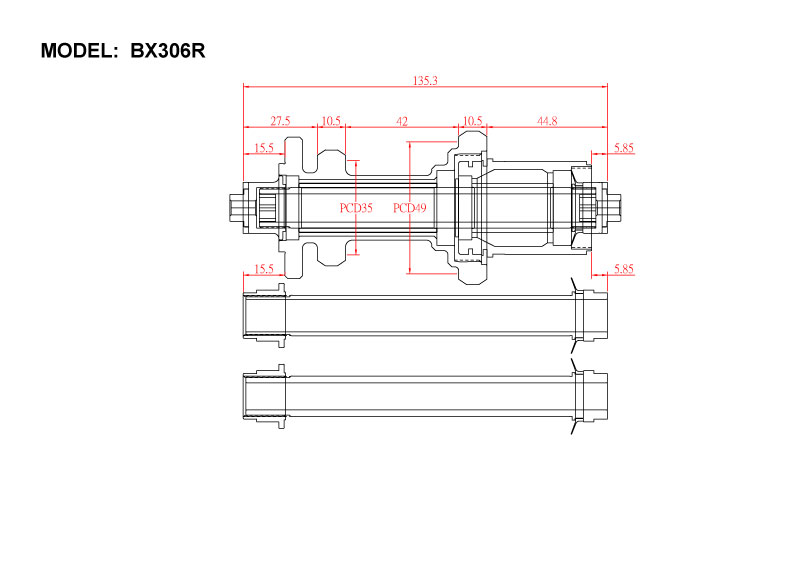

Products Drawing
Download
