specification

Brake Interface :

Disc(6-bolts)

Spoke System :

Straight Pull

Hole Count :

20, 24

Weight :

110g  ±  5g (M9)

Material :

Aluminum

Gauge :

14

Bearings :

2 ( 6803*2 )

P.C.D :

ø 36 - ø 36

Length :

100mm

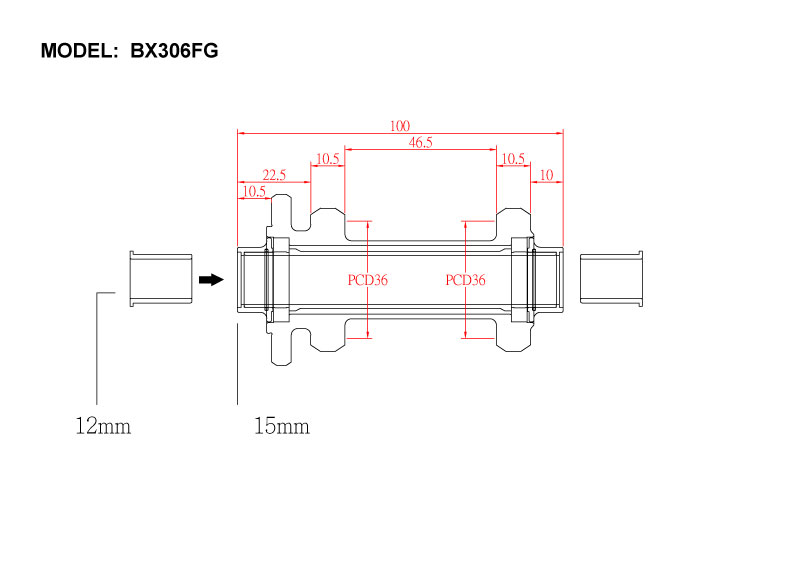

BX306FG – New generation Road Bike Hub with disk brake. Straight pull design increases durability. Unlike the traditional caliper brake hubs, this hub provides more powerful brake force and improves braking during poor weather conditions. Suggested for heavier-set riders.

WEIGHT :
M9 - 109 ± 5g
12M - 103 ± 5g
15M - 103 ± 5g
