Products
BX305RN
Road
specification
- Brake Interface :
- V Brake
- Spoke System :
- Straight Pull
- Hole Count :
- 20, 24
- Weight :
-
193g
±
5g
- Material :
- Aluminum 7075
- Gauge :
- 14
- Bearings :
- 4 (Hub 6802*2 / Freehub 6802*2)
- P.C.D :
-
ø
35
-
ø
49
- Axle System :
-
M10(QR) x 130mm
-
45g
(Alloy)
-
M10(QR) x 135mm
-
47g
(Alloy)
FreeHub Body Options
Shimano 10/11s
70g
±
5g
(Aluminum 7075)
Light weight
65g
±
5g
(Aluminum 7075)
Campy 10/11/12s
74g
±
5g
(Aluminum 7075)
XDR 11s/ 12s
68g
±
5g
(Aluminum 7075)

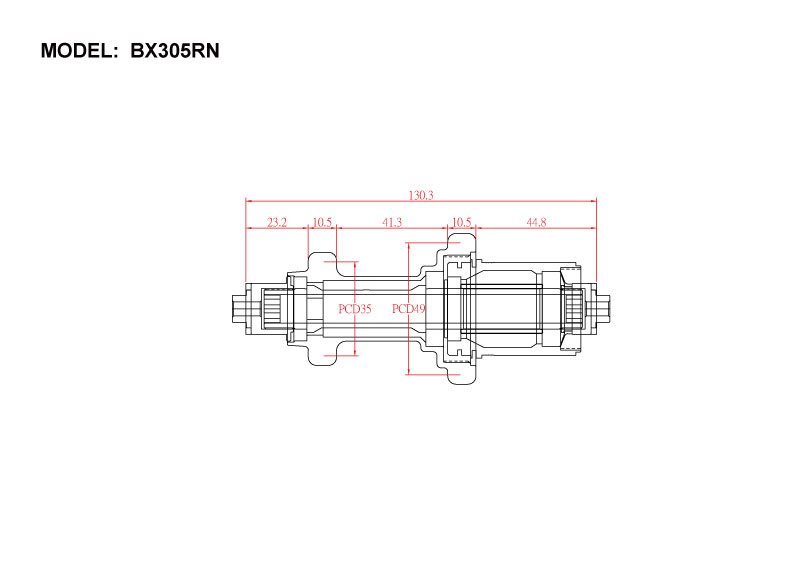

Products Drawing
Download
