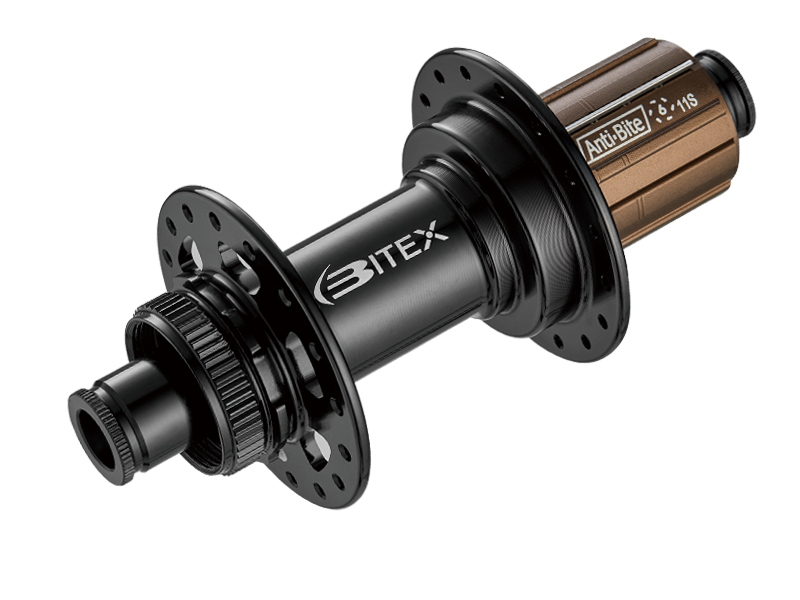

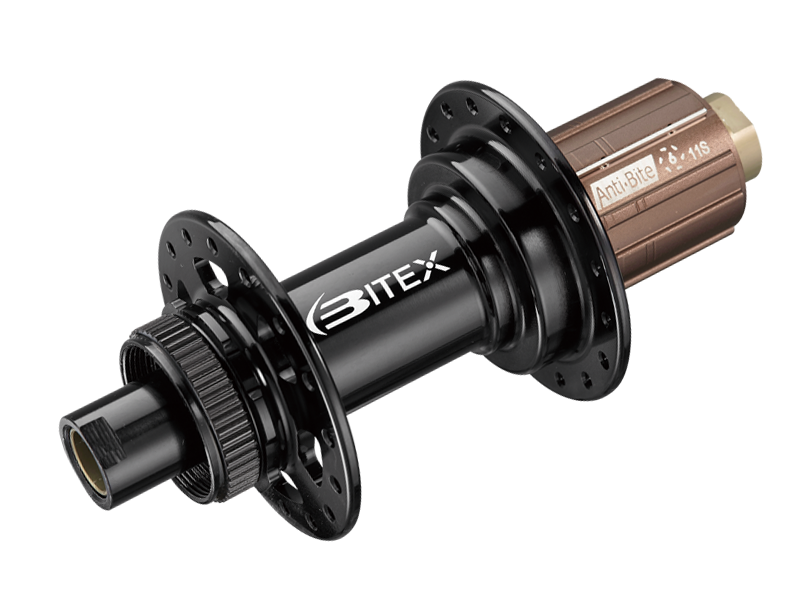

BX212R

Boost

specification

Brake Interface :
CenterLock
Spoke System :
J-Bend
Hole Count :
28, 32
Weight :
308g  ±  5g
Material :
Aluminum
Gauge :
14
Bearings :
4 (Hub 6902*2 / Freehub 6802+6902)
P.C.D :
ø 58 - ø 58
Axle System :
12M x 148mm  -  86g (Steel)
M10(QR) x 141mm  -  108g (Steel)

FreeHub Body Options

Shimano 10/11s
80g (Aluminum 7075)
Shimano 12s
74g  ±  5g (Aluminum 7075)
XD 11s / 12s
72g (Aluminum 7075)
