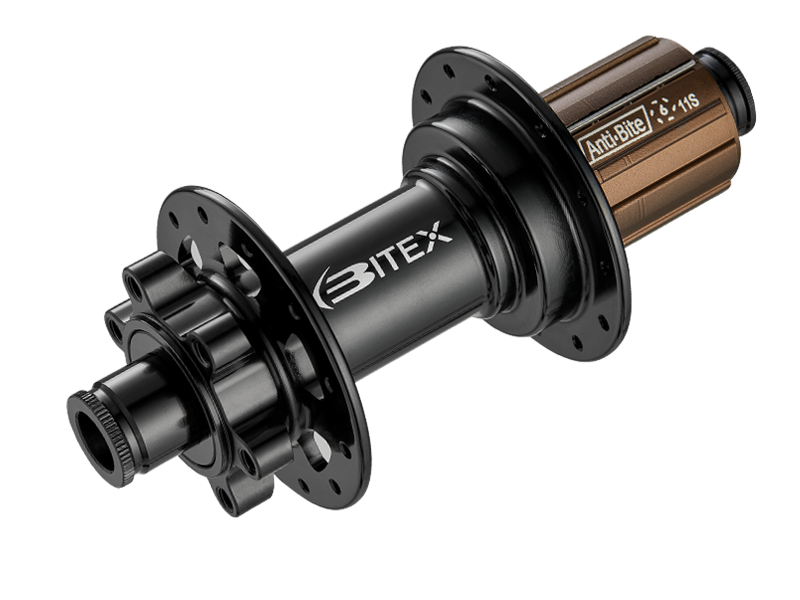

BX211R

Mountain  /  Boost

specification

Brake Interface :
Disc(6-bolts)
Spoke System :
J-Bend
Hole Count :
28, 32
Weight :
280g  ±  5g (12Mx148mm)
Material :
Aluminum
Gauge :
14
Bearings :
4 (Hub 6902*2 / Freehub 6802+6902)
P.C.D :
ø 58 - ø 58
Axle System :
M10 x 141mm  -  49g (Alloy)
12M x 148mm  -  36g (Alloy)
12M x 148mm  -  86g (Steel)

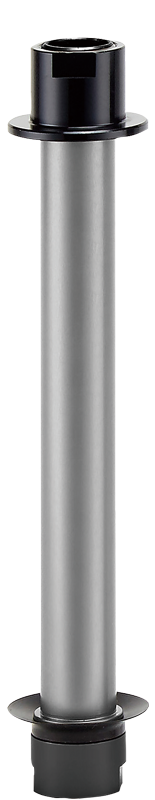

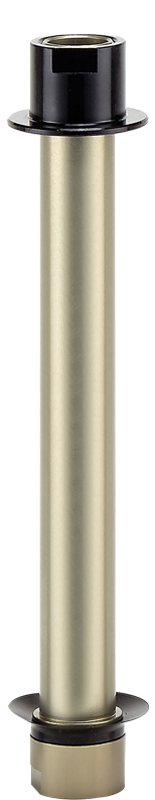

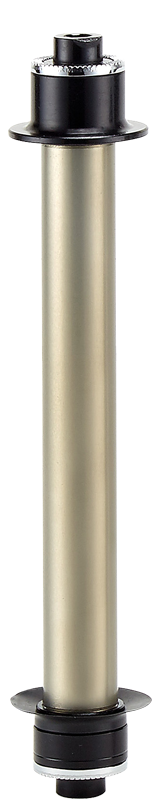

Axle Options

M10x141mm


49g (Alloy)
12Mx148mm


36g (Alloy)
12Mx148mm


86g (Steel)

FreeHub Body Options

Shimano 10/11s
80g (Alloy 7075)
Shimano 12s
74g  ±  5g (Alloy 7075)
XD 11s / 12s
72g (Alloy 7075)

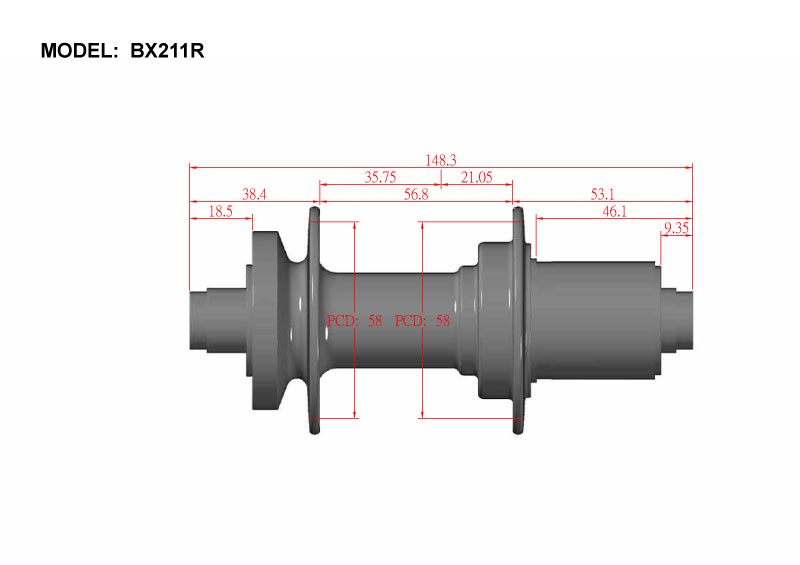

Products Drawing Download
