BX201R

CycleCross

specification

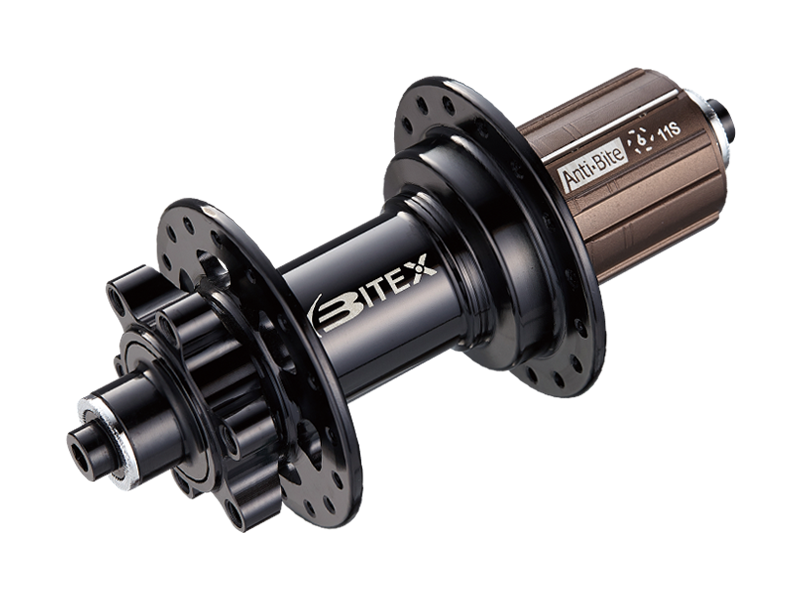

Cycle Cross Rear hub.

Brake Interface :
Disc(6-bolts)
Spoke System :
J-Bend
Hole Count :
24, 28
Weight :
284g  ±  5g (12Mx142mm)
Material :
Aluminum
Gauge :
14
Bearings :
4(Hub 6902*2 / Freehub 6802+6902)
P.C.D :
ø 58 - ø 58
Axle System :
M10(QR) x 135mm  -  47.5g (Axle:Alloy)
10M x 135mm  -  45g (Axle:Alloy)
12M x 142mm  -  35g (Alloy)
12M x 135mm  -  32.5g (Alloy)
12M x 142mm  -  84g (Steel)

FreeHub Body Options

Shimano 10/11s
80g (Alloy 7075)
XD 11s / 12s
72g (Alloy 7075)

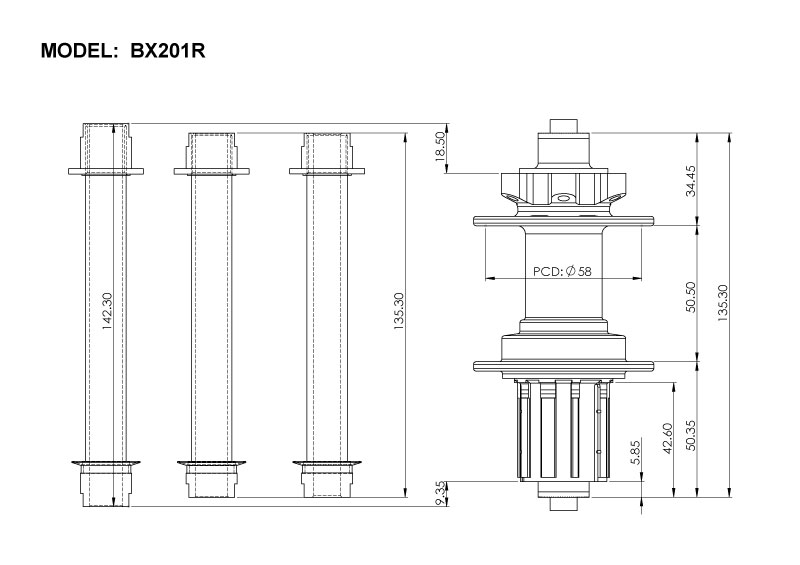

Products Drawing Download
