TKR10-D

Track Bike

specification

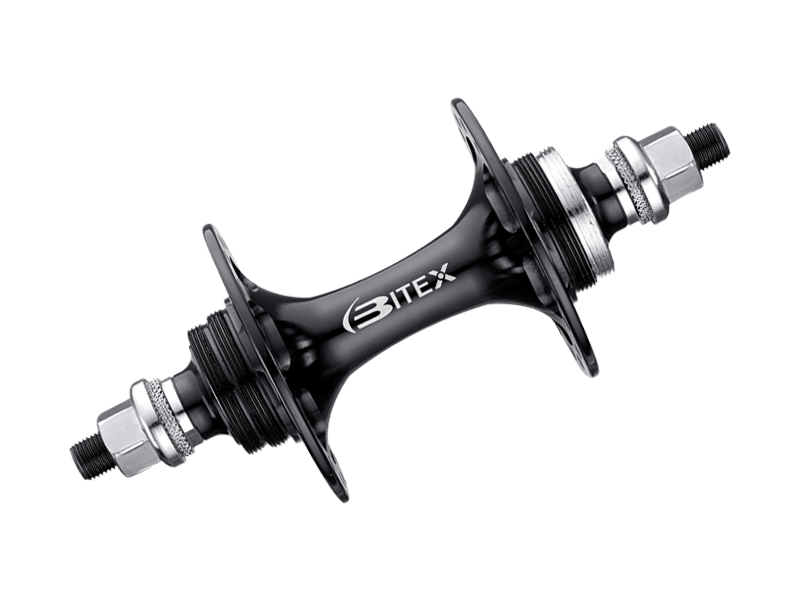

Track Bike Rear Hub.
Fixed / Fixed

Brake Interface :
Non
Spoke System :
J-Bend
Hole Count :
20, 24, 28, 32, 36
Weight :
272g  ±  5g
Material :
Aluminum
Gauge :
14
Bearings :
2 ( 6000*2 )
P.C.D :
ø 61.4 - ø 61.4
Length :
120mm

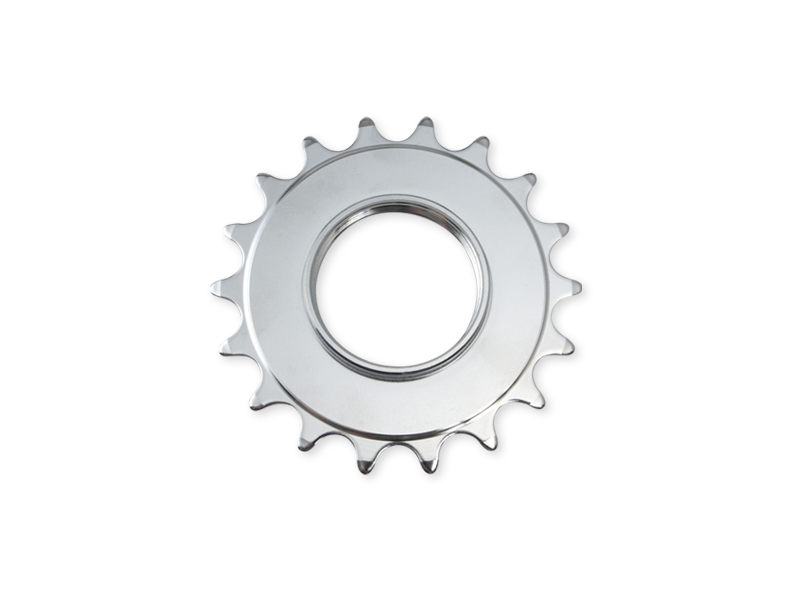

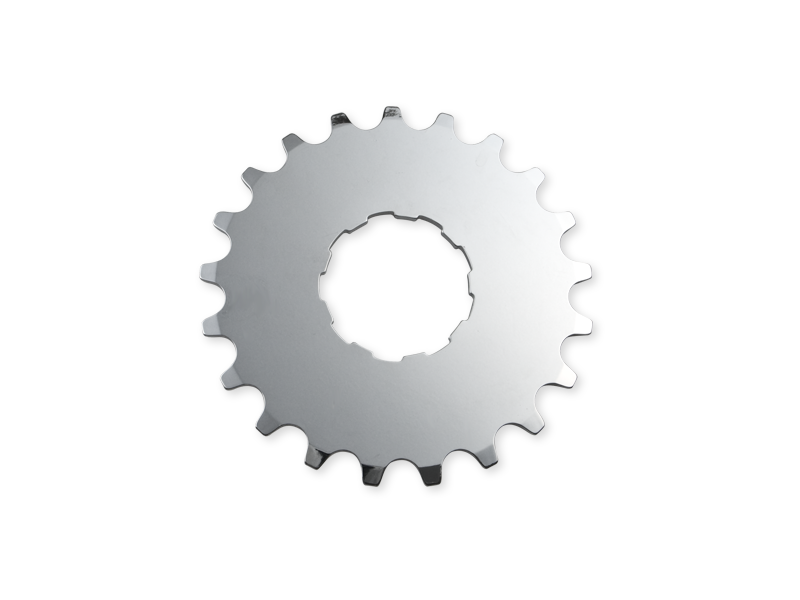

Track Cog Options

16T / t=3.0
17T, T=2.2
16T, T=2.2

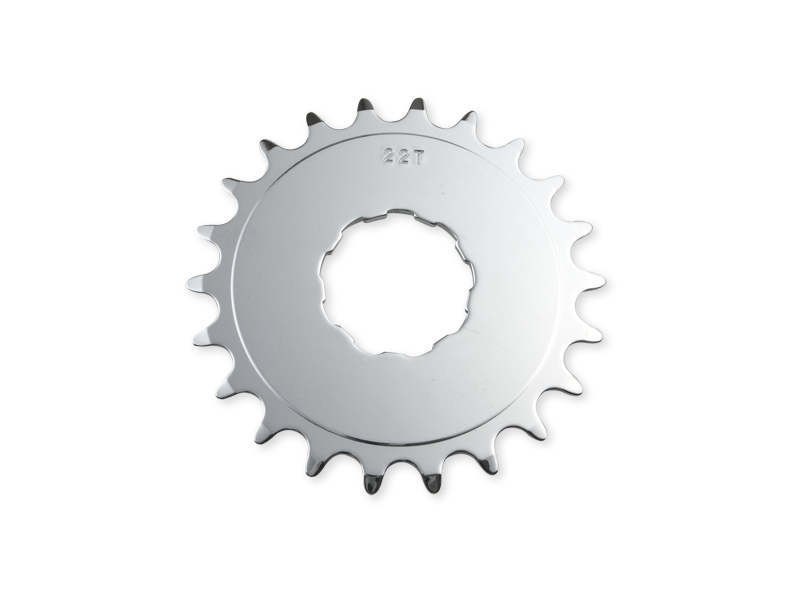

22T ,T=2.3
21T, T=2.3
16T
T=5.0

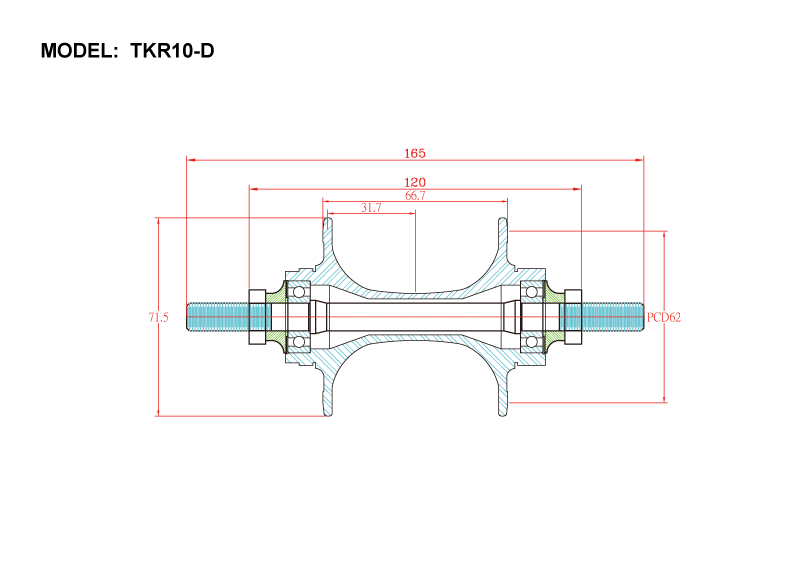

Products Drawing Download
