RAR16

Road

specification

Brake Interface :
V Brake
Spoke System :
J-Bend
Hole Count :
24, 28, 32
Weight :
226g  ±  5g
Material :
Aluminum
Gauge :
14
Bearings :
4 (Hub 6802+6902 / Freehub 6802+6902)
P.C.D :
ø 50.6 - ø 50.6
Axle System :
M10(QR) x 130mm  -  45g (Alloy)
M10(QR) x 135mm  -  47g (Alloy)

End cap Options

M10(QR)x130mm
10g (Alloy 7075)
M10(QR)x135mm
12g (Alloy 7075)

FreeHub Body Options

Shimano 10/11s
77g (Aluminum 7075)
Campy 10/11/12s
74g (Aluminum 7075)
XDR 11s/ 12s
68g (Aluminum 7075)

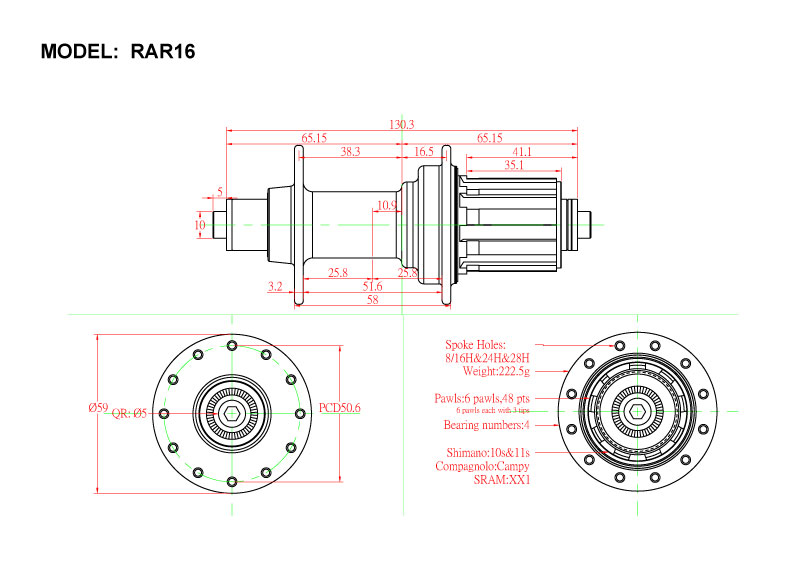

Products Drawing Download
