MTR12

Mountain  /  MTB

specification

WEIGHT :
M10/135mm - 284 ± 5g
10M/135mm - 282 ± 5g
12M/135mm - 268 ± 5g
12M/142mm - 283 ± 5g
12M/142mm - n/a (Cr-Mo)

Brake Interface :
Disc(6-bolts)
Spoke System :
J-Bend
Hole Count :
24, 28, 32, 36
Weight :
284g  ±  5g
Material :
Aluminum
Gauge :
14
Bearings :
4 (6902*3+6802*1) - Hub(6902*2) freehub body(6802+6902)
P.C.D :
ø 58 - ø 58

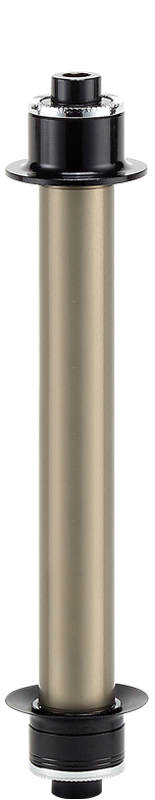

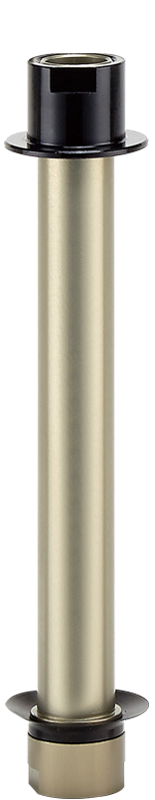

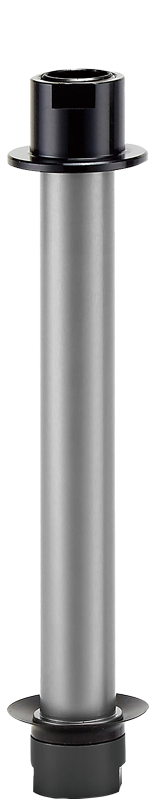

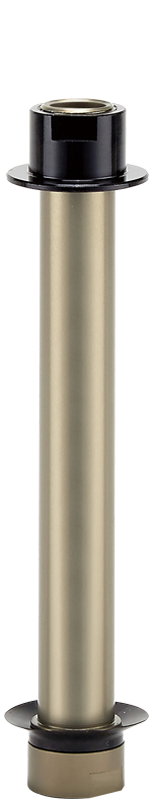

Axle Options

M10(QR)x135mm


47.5g (Cap:7075 , Axle: 6061)

10Mx135mm


45g (Cap:7075 , Axle: 6061)

12Mx142mm


35g (Cap:7075 , Axle: 6061)

12Mx135mm


32.5g (Cap:7075 , Axle: 6061)

12Mx142mm


84g (Steel)


FreeHub Body Options

Shimano 10/11s
80g (Alloy 7075)
XD 11s
72g (Alloy 7075)
Shimano 12s
74g (Alloy 7075)

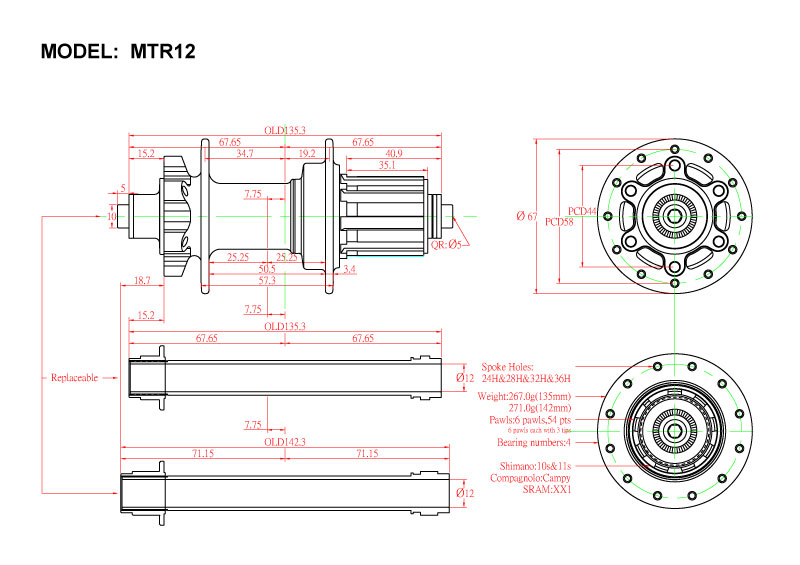

Products Drawing Download
