BX307R

Road

specification

BX307R – New generation Road Bike Hub, using innovative carbon bounding technology to allow varieties of hub looks. Straight pull design increases durability. Bigger size of flange increases lateral stiffness. Suitable for routine training.

Brake Interface :
V Brake
Spoke System :
Straight Pull
Hole Count :
7/14, 8/16
Weight :
260g  ±  5g
Material :
Aluminum
Gauge :
14
Bearings :
4 (Hub 6802+6902 / Freehub 6802+6902)
P.C.D :
ø 42 - ø 68
Axle System :
M10(QR) x 130mm

FreeHub Body Options

Shimano 10/11s
77g (Aluminum 7075)
Campy 10/11/12s
74g (Aluminum 7075)
XDR 11s/ 12s
68g (Aluminum 7075)

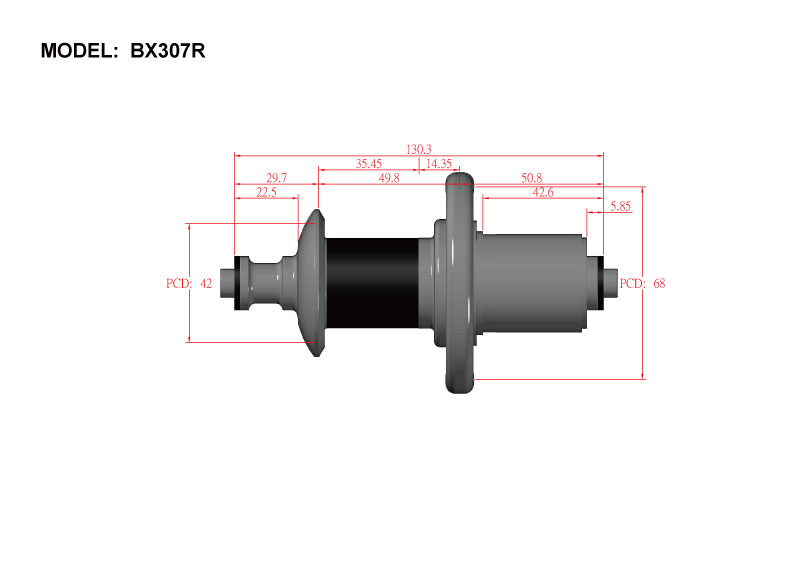

Products Drawing Download
