BX106R

Road  /  Road

specification

WEIGHT :
M10/135mm - 260 ± 5g
12M/135mm - 257 ± 5g
12M/142mm - 246 ± 5g

Brake Interface :
CenterLock
Spoke System :
J-Bend
Hole Count :
24, 28, 32
Weight :
246g  ±  5g
Material :
Aluminum
Gauge :
14
Bearings :
4 (6902*3+6802*1)
P.C.D :
ø 45 - ø 50.6

Axle Options

M10(QR)x135mm


47.5g (Cap:7075 , Axle: 6061)

10Mx135mm


45g (Cap:7075 , Axle: 6061)

12Mx135mm


32.5g (Cap:7075 , Axle: 6061)

12Mx142mm


35g (Cap:7075 , Axle: 6061)


FreeHub Body Options

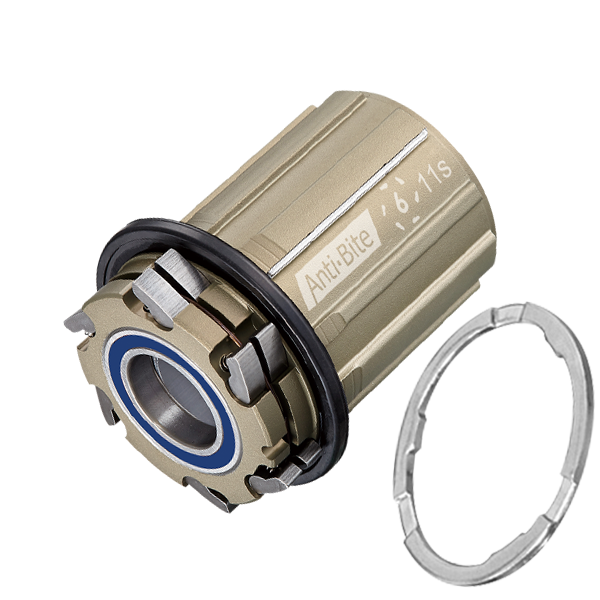

Shimano 10/11s
77g (Alloy 7075)

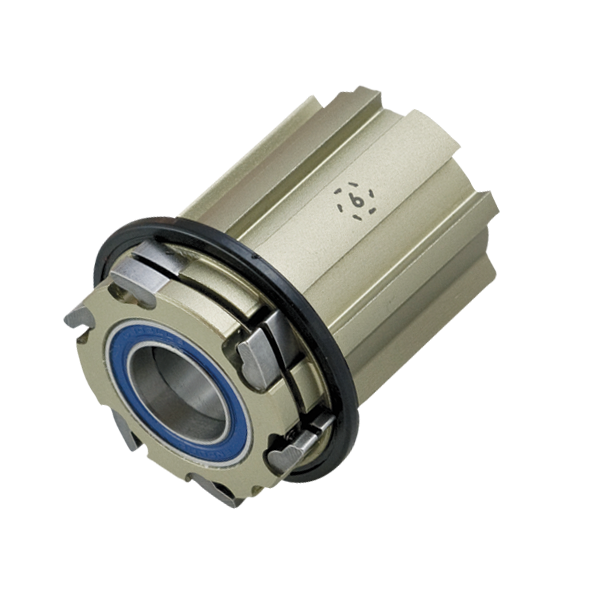

Campy 11s
74g (Alloy 7075)

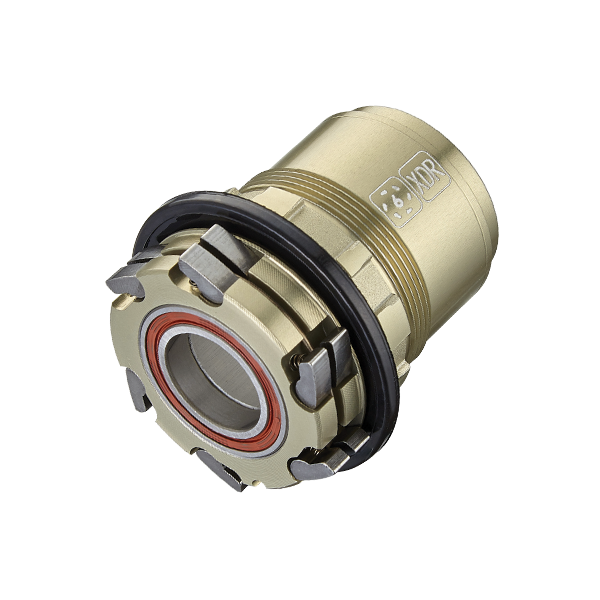

XDR 12s
68g (Alloy 7075)
Shimano 12s
74g (Alloy 7075)

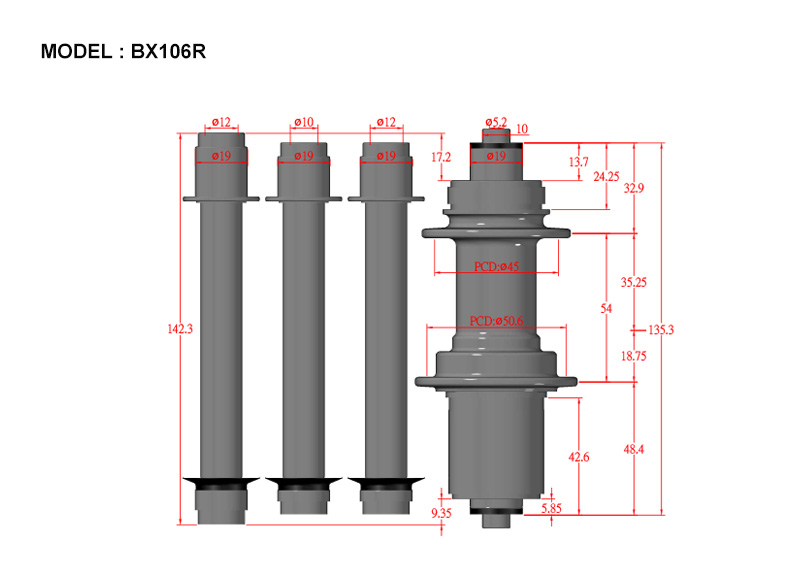

Products Drawing Download
